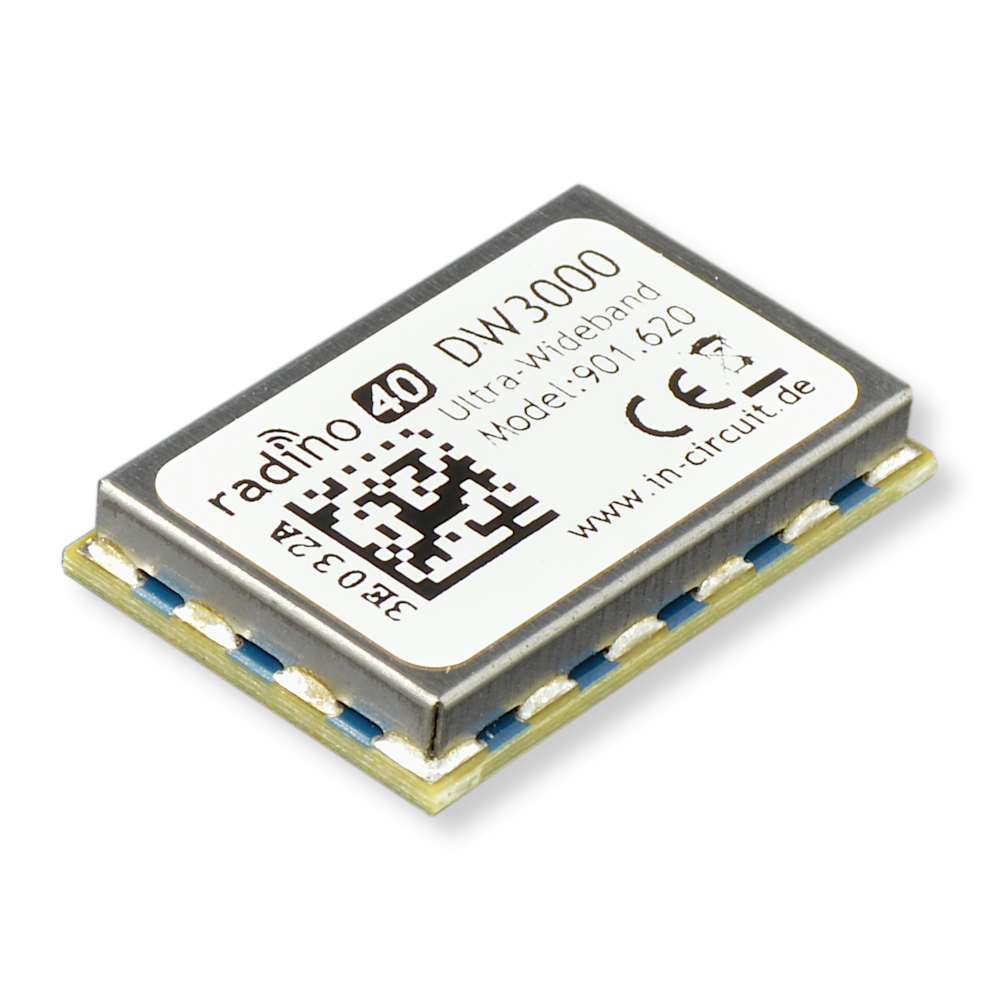

The radino40 DW3000 combines a Nordic nRF52840 MCU with a Qorvo DW3220 UWB transceiver in the 23×15×4 mm radino40 form factor, delivering accurate ranging and extended range for battery-operated RTLS and IoT.
Main Features
- UWB: Qorvo DW3220 (DW3000 family), IEEE 802.15.4-2015/4z, ch 5 & 9, up to 6.8 Mbps, FiRa™ compliant
- On-board front end: Qorvo QM14068 LNA + QM14070 PA for extended range
- MCU: Nordic nRF52840, ARM Cortex-M4 @ 64 MHz, 1 MB Flash / 256 kB RAM
- Radio: Bluetooth 5/LE, 802.15.4/Thread, ANT/ANT+, proprietary 2.4 GHz
- Interfaces: SPI, QSPI, I²C, UART, USB 2.0, NFC-A
- Peripherals: 12-bit 200 ksps ADC, 5× timers, 3× RTC, 4× PWM; 37 GPIOs
- Integrated bootloader
Benefits
- On-board LNA + PA for greater UWB range
- Multiprotocol in one module: UWB + BLE + IEEE 802.15.4/Thread + ANT
- Ready-to-use radino40 carrier boards and matched UWB antennas available
Applications: RTLS, asset tracking, industrial automation, healthcare, smart home.
Underlying FiRa Certification
- FiRa Certified Chip(s) Used:
