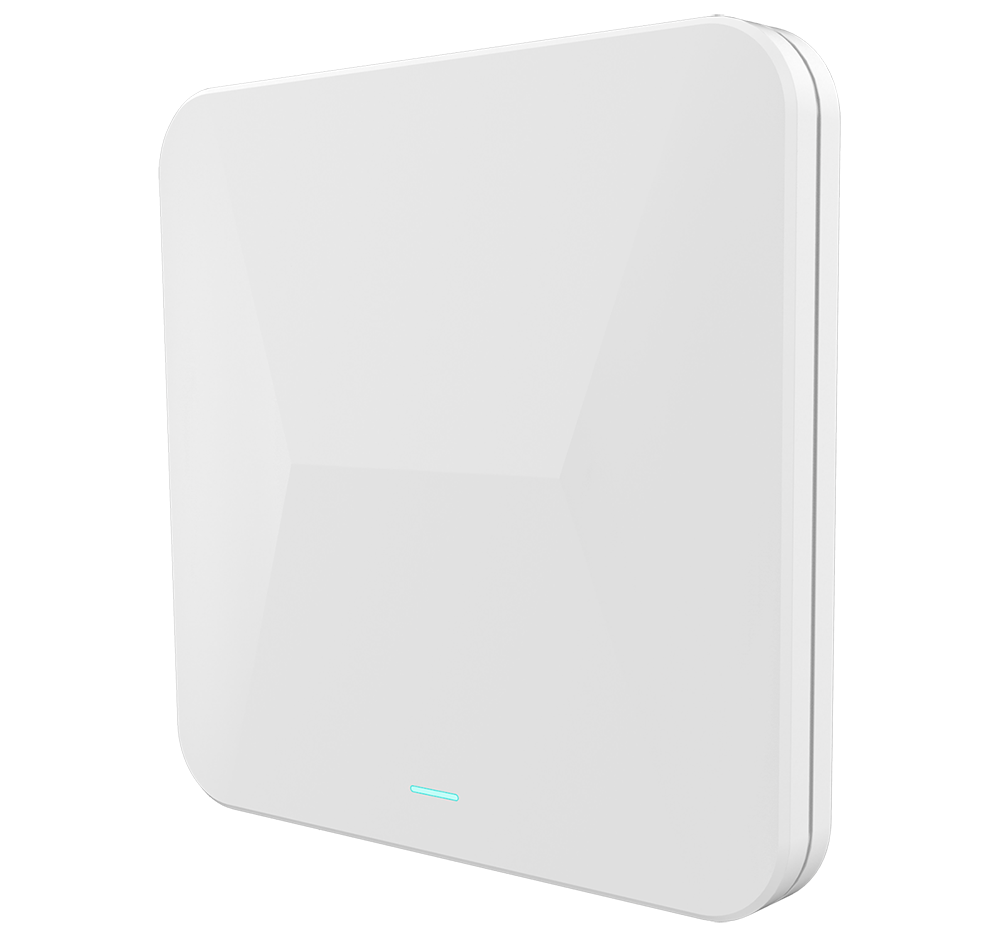

Down-Link TDoA Anchor (D32) - Eforthink Technology Co., Ltd.

D32 is a UWB Downlink TDoA anchor designed for untracked navigation of UWB-enabled smartphone. The D32 delivers centimeter-level positioning accuracy with a maximum coverage range over 50 meters. It supports 0D, 1D, 2D, and 3D positioning modes, making it suitable for a broad spectrum of complex indoor environments.

1. Protocol Conformance
   IEEE Std 802.15.4-2024
   FiRa Core Technical Specification v3.0
   FiRa Untracked Navigation Profile Specification
   FiRa Untracked Navigation Profile Specification — Mobile Edition

2. Other Parameter
   Dimensions (L × W × H): 86.6 × 86.6 × 35.6 mm
   Weight: 200 g
   Antenna Type: Integrated on-board antenna
   Rated Power: 3W
   Power Supply: Power over Ethernet (IEEE 802.3at)
   Rated Input Voltage: 48 V DC (standard PoE)
   Network Connector: RJ45, 8-pin
   Wired Data Interface: 10/100 Mbps LAN, auto-negotiation
